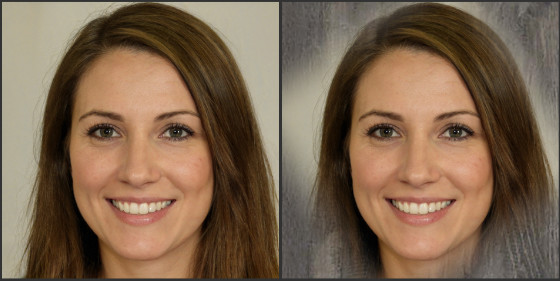

VignetteEffectRaw Class (console safe)
MPImageFilterRaw
VignetteEffectRaw
IRawBitmapProcessor
IRawBitmapProcessorAsync
 Angle (console safe) | Angle of the Vignette in degrees. |
| AsyncCompleted (Inherited) (console safe) | Returns true if asynchronous execution has completed, else false. |
| AsyncResult (Inherited) (console safe) | Returns the result bitmap of asynchronous execution. |
| CPUCoreCount (Inherited) (console safe) | Returns number of detected CPU cores on the running machine. |
| Canceled (Inherited) (console safe) | If this one returns true then the effects execution was canceled by a Progress handler. |
| CenterDeltaX (console safe) | Horizontal offset of the vignette. |
| CenterDeltaY (console safe) | Vertical offset of the vignette. |
| Coverage (console safe) | Percentage coverage of the vignette. |
| ErrorCode (Inherited) (console safe) | Returns error code after applying the effect. This value is a Constant defined in the PictureEffectsRawError module. |
| ForceThreads (Inherited) (console safe) | Forces use of thread when set to true even when using only one CPU core. |
| InterpolationSteps (console safe) | Count of interpolation steps for the vignette edge. |
| InterpolationWidth (console safe) | Width of the interpolation zone. |
| Mask (console safe) | Sets mask for the operation if masking is wanted. |
| MaximumCPUCores (Inherited) (console safe) | Read only property where each effect can report maximum CPU cores it supports. |
| MultiprocessingHint (Inherited) (console safe) | Use this property to fine tune CPU usage for this algorithm. By default this property is set to zero (Automatic). This property accepts all constants that are defined in this class. |
| ProgressHandler (Inherited) (console safe) | Use this property to use a progress class to get progress feedback from this function. This class must be a class that Implements the IProgressHandler Interface which is defined in this plugin. |
| Shape (console safe) | Shape of the vignette. |
 Apply (console safe) | Applies the effect on a RawBitmap image with parameters that have been set on the class instance. |
| ApplyAsync (console safe) | Applies the effect asynchronously on a RawBitmap image with parameters that have been set on the class instance. |
| Cancel (Inherited) (console safe) | Cancels processing and waits for threads to come to full stop when in asynchronous execution. |
| SetVignetteColor (console safe) | Sets vignette color. (Can be color with Transparency) |
| SetVignetteTexture (console safe) | Sets the texture for the vignette. And puts the vignette in texture mode. |
 ShapeValues | Enum to configure shape of the vignette. This enum is used in the Shape property on the VignetteEffectRaw class. |
 CPU_USE_MACHINE_CORE_COUNT = -1 (Inherited) | |
| CPU_USE_AUTOMATIC = 0 (Inherited) | |
| CPU_USE_1_CORE = 1 (Inherited) | |
| CPU_USE_2_CORES = 2 (Inherited) | |
| CPU_USE_3_CORES = 3 (Inherited) | |
| CPU_USE_4_CORES = 4 (Inherited) | |
| CPU_USE_5_CORES = 5 (Inherited) | |
| CPU_USE_6_CORES = 6 (Inherited) | |
| CPU_USE_7_CORES = 7 (Inherited) | |
| CPU_USE_8_CORES = 8 (Inherited) |
